Finishing work

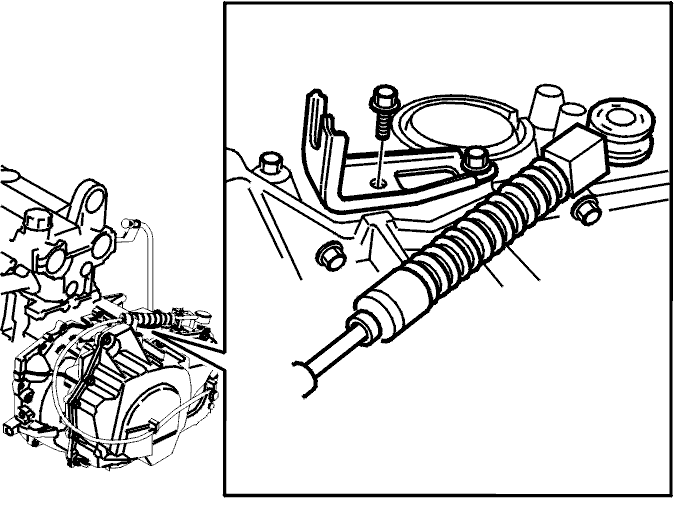

Fig 1: Identifying Removing/Installing Transmission Cable
GLL104339Courtesy of VOLVO CARS OF NORTH AMERICA.

Install plug with new test output.

Tighten the cable bracket to the transmission. Tighten to 25 Nm  . Press cable into place on the bracket.

Install the air cleaner (ACL) housing see  Install the air cleaner (ACL) housing
