Installing the lifting hook, part 1

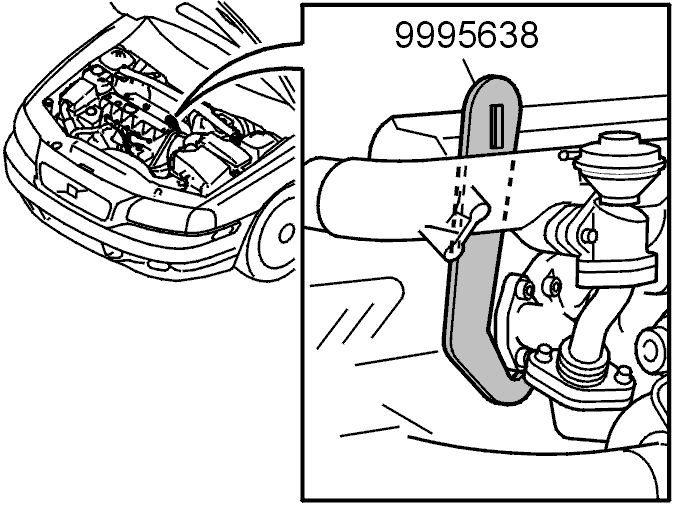

Fig 1: Identifying Lifting Hook Positioned Between Valve Cover And Intake Manifold

Courtesy of VOLVO CARS OF NORTH AMERICA.

Lifting hook 9995638 consists of two sections.

Position the (straight) lifting hook between the valve cover and the intake manifold so that it engages in the exhaust manifold (see the illustration).
