Removing the gear selector cable

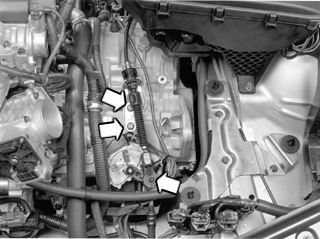

Fig 1: Identifying Gear Selector Cables

Courtesy of VOLVO CARS OF NORTH AMERICA.

Remove the screws from the bracket for the gear selector cables.

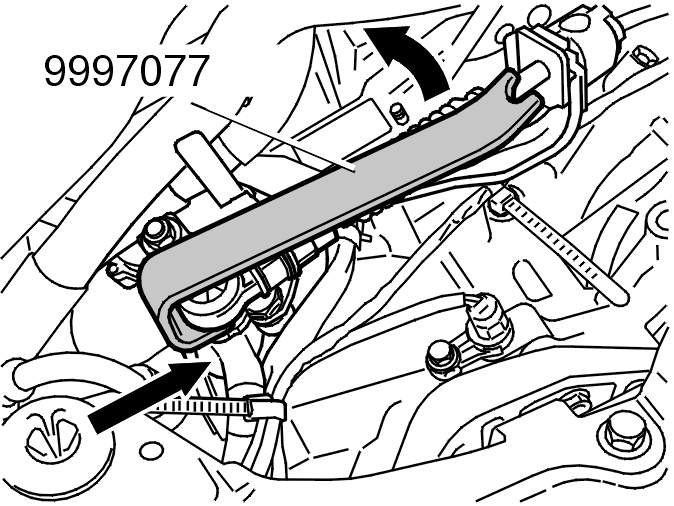

Fig 2: Identifying Detachment Of Cable From Lever Using Special Tool

Courtesy of VOLVO CARS OF NORTH AMERICA.

Detach the cable from the lever. Use special tool 9997077 .

Remove the cable from the bracket.

Move the cable to one side.
