Checking the setting

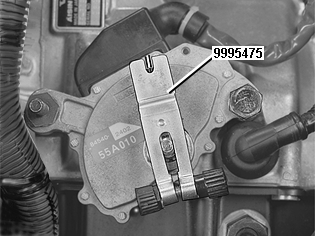

Fig 1: Identifying Adjustment Tool 999 5475

Courtesy of VOLVO CARS OF NORTH AMERICA.

NOTE:

When adjusting the gear-shift position sensor, press the tool down to the flat surfaces below the thread on the shaft.

Remove the lever. Install adjustment tool 9995475 on the gear shift linkage rod. Check that the shaft is in the N position. The groove on the tool must align with the marking on the gear position sensor.

If adjustment is required, see the following procedure in this section.
