Fuel line

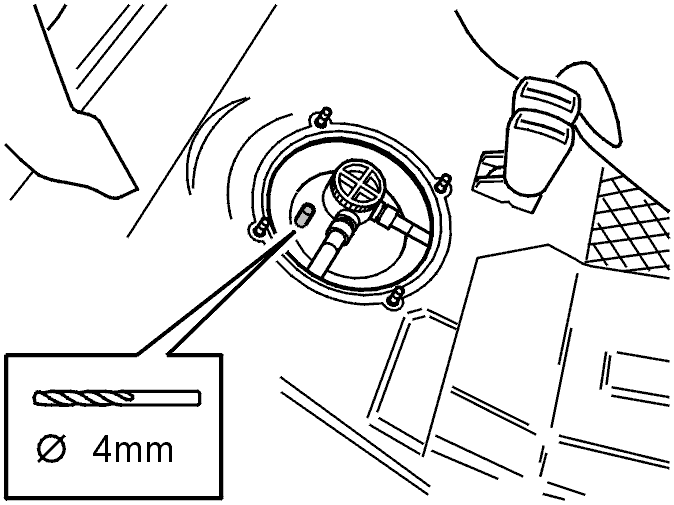

Fig 1: Locating Position To Drill 4 MM Hole
GLL102836Courtesy of VOLVO CARS OF NORTH AMERICA.
NOTE: When installing from new, drill a 4 mm hole for the fuel line as shown.

Reinstall in reverse order.

NOTE: When installing for the first time connect the fuel line to a vacuum pump. Suck carefully until fuel comes out. Connect the cables and hoses.
