The outer vents on the dashboard and the seal

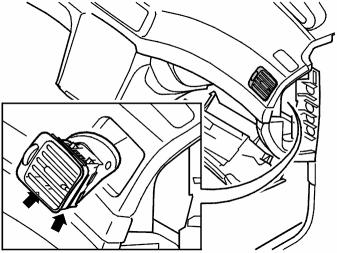

Fig 1: Identifying Dashboard Outer Vents

Courtesy of VOLVO CARS OF NORTH AMERICA.

Remove the cover on the side of the dashboard.

Remove the light switch. See Switches lights, replacing

Detach the catches on the underneath.

Press out the lower edge. Then detach the remainder.

Replace the seal if necessary.

Install in reverse order.
