Defroster duct, windshield

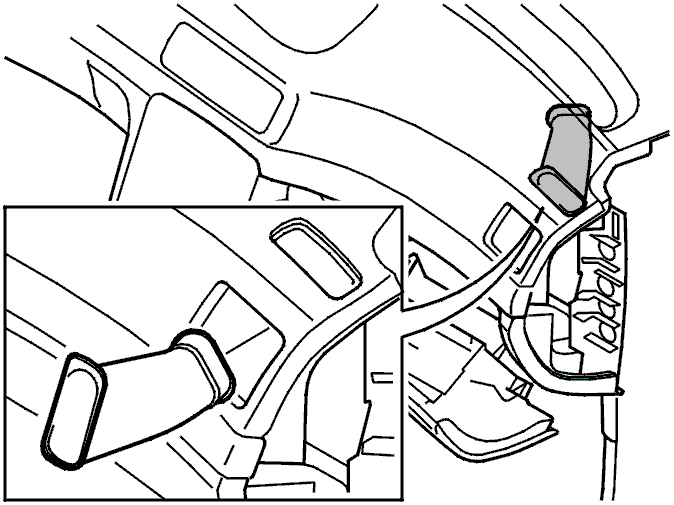

Fig 1: Identifying Defroster Duct
GLL105207Courtesy of VOLVO CARS OF NORTH AMERICA.

When replacing the defroster duct on the windshield, the entire dashboard must be replaced. See Dashboard, replacing

Installation
