Air cleaner passenger compartment, replacing: Removal

Remove:

• the soundproofing panel. See Soundproofing panel, replacing

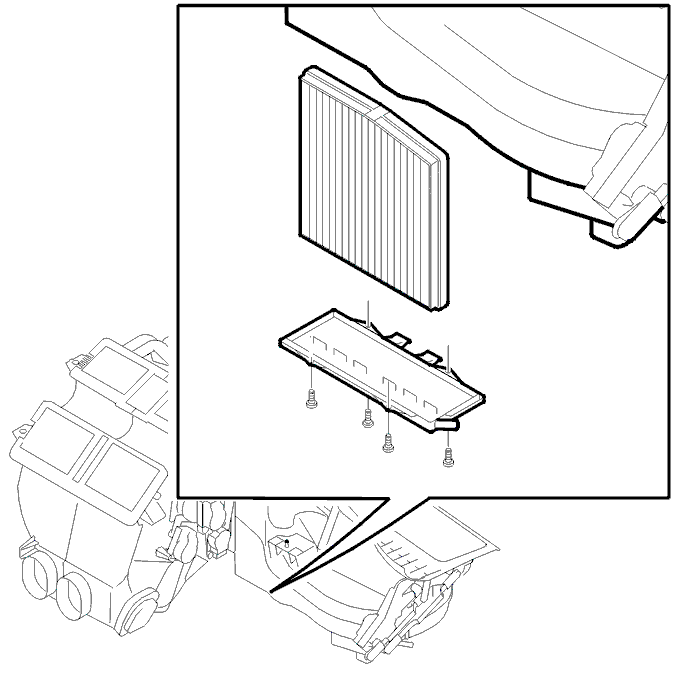

Fig 1: Air Cleaner (ACL) And Cover

Courtesy of VOLVO CARS OF NORTH AMERICA.

Remove:

• the screws for the cover
• the cover.

Pull the air cleaner (ACL) downwards/away.
