Condenser - Work under the car

• Screw the protective sleeve loosely into place on the service valve
• Install the receiver/dryer. See Accumulator/receiver drier, replacing .
• Fill the condenser with oil. See Filling the A/C system with oil
  NOTE: Always use new O-rings lubricated with compressor oil.

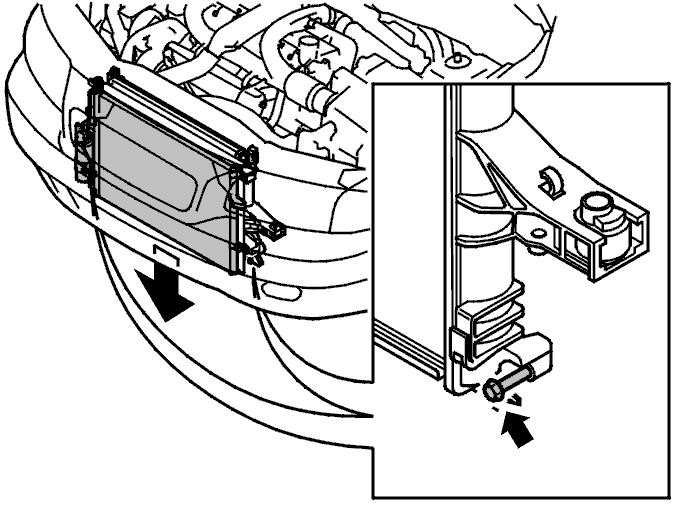

• Press the air conditioning aggregate backwards. Push the condenser up slightly. Install the switch from the pressure sensor on the receiver.

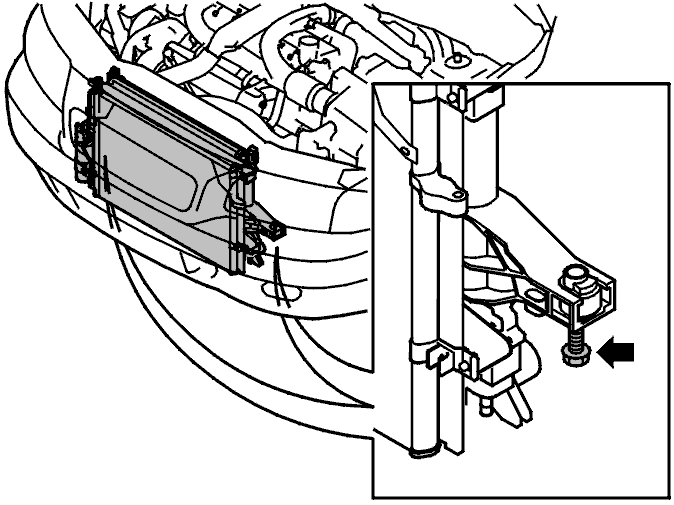

• Thread in the lower screws for the air conditioning aggregate
• Check that the condenser is in the correct position against the air conditioning aggregate. Tighten the screws for the air conditioning aggregate.

• Position the hose/pipe from the compressor in the mounting hook. Position the hose/pipe in the hose connector on the condenser
• Thread and tighten the screw by hand so that the hose connector touches the bottom
• Tighten the screw for the hose connector from the compressor. Tighten to 25 Nm  .

• Position the air conditioning aggregate against the rubber seals. Tighten the screws for the air conditioning aggregate against the member
• Check that the seals are correctly positioned.

• Install the hose connector for the receiver. Tighten to 10 Nm  .

• Install the air baffle.

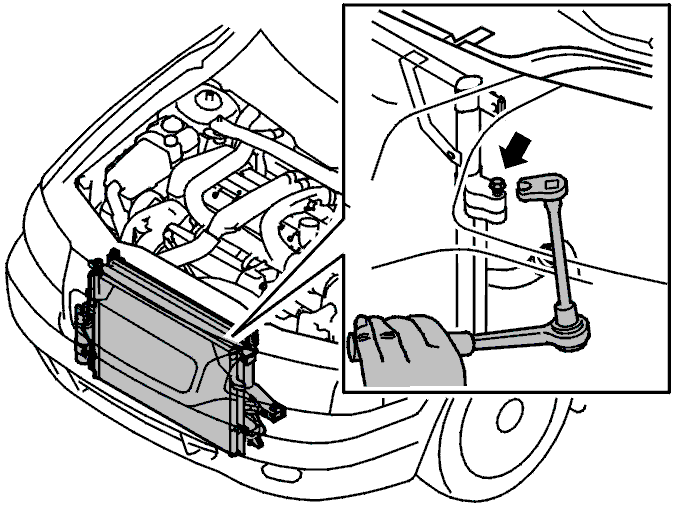

• Thread the upper screws for the air conditioning aggregate on the condenser. Tighten the screws.

• Thread the screws on the upper mountings on the air conditioning aggregate. Tighten the screws.

• Vacuum pump the system and test for leaks. See Refrigerant, draining
• Fill the system with refrigerant and check for leaks. See Refrigerant, draining
• Connect the battery negative lead. See Battery, replacing .
