Fault-tracing information

Use the following information and general checks during fault-tracing.

1. Check, if possible, relevant functions in the vehicle using buttons/controls/test drives to determine the status of the fault.
   NOTE:

   If the vehicle does not show any of the given symptoms in the diagnostic trouble code information (DTC), this may mean that the fault is intermittent or that the control module is not detecting the fault at this moment.

2. Use the diagnostic trouble code's frozen values  , status identifiers  and counter  to determine the operating conditions when the fault was detected, the fault's current status and any degree of intermittence of the fault.
3. Check and fault-trace according to the fault causes  that are specified in the diagnostic trouble code (DTC) information  .
4. Use VIDA Vehicle communication  . Read off the parameters, activate components and functions, carry out quick tests and checking routines for the diagnostic trouble codes to identify the fault.
5. Check relevant components according to Component specifications  .
6. Check relevant signals using the appropriate wiring diagram  , signal specification information  , and breakout box  .

Remedy as necessary.

Other information

• See Signal specification
• See Component resistance values
• See Description of parameters
• See Description of frozen values
• See Climate control, location of components

Repair

• See Climate control unit, replacing
• See Damper motor module (DMM) defroster, replacing
• See Damper motor module (DMM) recirculation, replacing
• See Damper motor module (DMM) temperature, replacing
• See Damper motor module (DMM) air distribution, replacing
• See Air quality sensor
• See Seat heating module (SHM), replacing

Fig 1: Identifying VOLVO Certified Service Personnel

Courtesy of VOLVO CARS OF NORTH AMERICA.

Fig 2: Identifying VIDA

Courtesy of VOLVO CARS OF NORTH AMERICA.

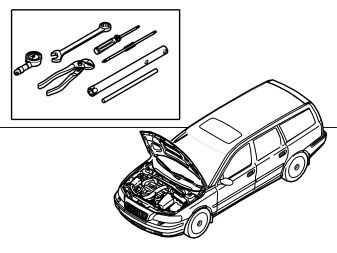

Fig 3: Identifying Relevant Tools
