Replacing the component

The climate control module (CCM) has registered an internal fault in the damper motor module (DMM) for temperature left.

If the fault is intermittent, it has been registered previously but is no longer present. Intermittent faults may be caused by interference at start up of the damper motor module (DMM). Intermittent faults may also be caused by other types of intermittent faults. The fault is evaluated depending on how it occurs. Replace the damper motor module (DMM) if the fault recurs.

Replace the damper motor module (DMM) for temperature left If the fault is permanent:

See Damper motor temperature, replacing

Remedy as necessary.

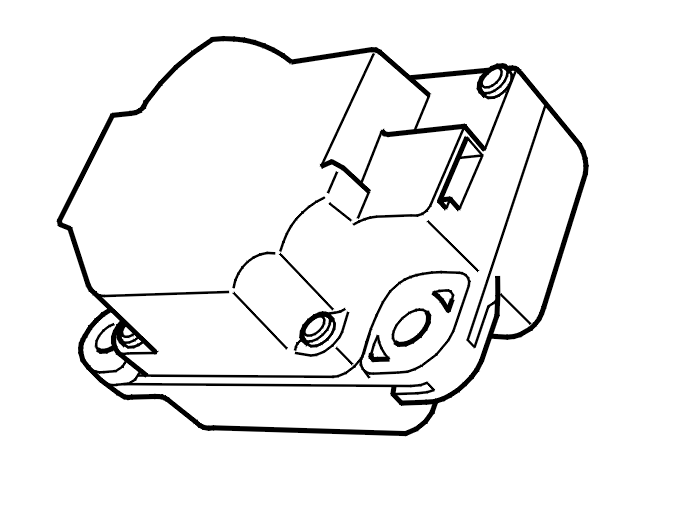

Fig 1: Identifying Damper Motor Module (DMM)

Courtesy of VOLVO CARS OF NORTH AMERICA.

• Continue

  Refer to Identifying the Damper Motor Module (DMM)
