Position the engine according to marking

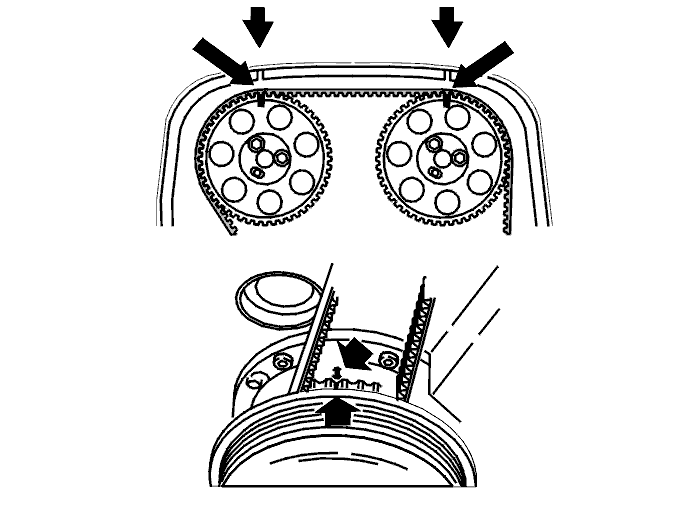

Fig 1: Identifying Crankshaft

Courtesy of VOLVO CARS OF NORTH AMERICA.

Place upper camshaft belt cover.

Turn crankshaft clockwise until the markings on the crankshaft and camshaft pulleys correspond.

Turn crankshaft a further 1/4 turn clockwise and then back again until the markings correspond.

Remove:

• upper camshaft belt cover.

• Continue

  Refer to Installing crankshaft adjustment tool
