Oil Pump / Crankshaft Seal, Front, Replacing: Preparation

Remove the timing belt. See Removing the timing belt .

Check the tensioner and idler pulleys. See Checking the tensioner and idler pulleys .

Lock the tensioner / damping unit. See Installing the tensioner / damping unit .

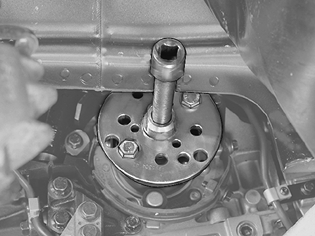

Fig 1: Pulling Away Timing Gear Pulley Using Puller 999 5304

Courtesy of VOLVO CARS OF NORTH AMERICA.

Carefully pull away the timing gear pulley. Use puller 9995304 .
