Checking components and wiring
Check the rear electronic module (REM) and seat belt reminder sensor connectors. Check for contact resistance and oxidation. Check for damage and loose connections. Also check intermediate connector.
Check the signal cable between rear electronic module (REM) terminal #B19 (terminal #A39) and seat belt reminder sensor connector terminal #9. Check for an open-circuit.
Check the signal cable between rear electronic module (REM) terminal #B20 (terminal #A40) and seat belt reminder sensor connector terminal #10. Check for an open-circuit.

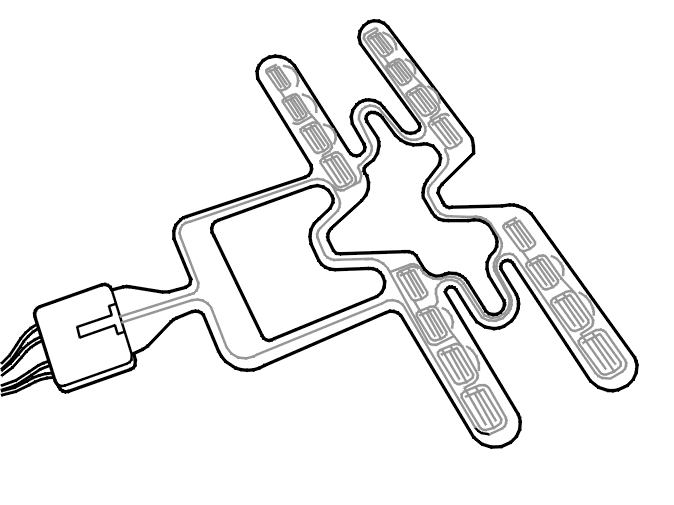

Check the seat belt reminder sensor. Measure the resistance between terminals #9 and #10 in the sensor connector.
HINT: The resistance should be above 100 kΩ with no passengers and below 10 kΩ with passengers.
Remedy as necessary.
Other information:
- To connect the breakout box, see Connecting the breakout box
- To access or replace the seat belt reminder sensor:
- See Heater pad, replacing (-2004) or Heater pad backrest and cushion, replacing (2005-).
- For -2003, see Signal specification
- For 2004, see Signal specification
- See Checking wiring and terminals .
- Continue
Refer to Verification
