Checking power supply

Check that the internal fuse in the DVD player is intact. Replace the fuse if it is damaged.

Check the wiring between the DVD player and the Rear Seat Entertainment Module (RSE).

Check the voltage to the DVD player at the Rear Seat Entertainment Module (RSE). Measure between #D4 and #D6.

Other information

• See Signal specification, rear seat entertainment module (RSE)
• For further information about the fuses and relays, see the Wiring Diagram.
• See Rear seat entertainment module (RSE), replacing
• See DVD player, replacing
• See Checking wiring and terminals

Fig 1: Identifying Rear Seat Entertainment Module (RSE)

Courtesy of VOLVO CARS OF NORTH AMERICA.

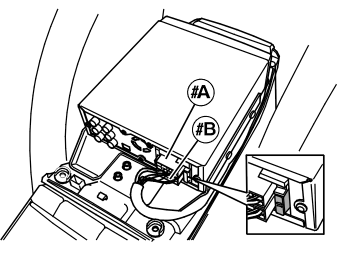

Fig 2: Identifying DVD-Player And Connectors

Courtesy of VOLVO CARS OF NORTH AMERICA.

Is voltage between 10-14 V?

• YES

  Refer to Checking ground connection

• NO

  Refer to Checking wiring
