Signal specification, rear seat entertainment module (RSE)
| U= | DC voltage in volts (V) | UAC = | AC voltage in volts (V) |
| Ubat = | Battery voltage (V) | f = | Frequency in Hertz (Hz) |
| Ulow = | Voltage approximately 0 V | t = | Time in seconds |
| PWM = | Pulse-width modulated signal in % |

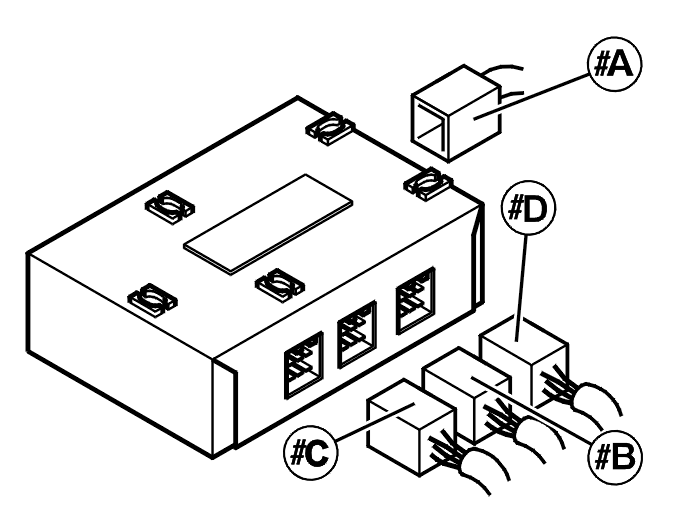

Rear seat entertainment module (RSE)
Signal table
| Terminal | Signal type | Ignition on | Cable or signal information |
|---|---|---|---|
| #A1 | I2C data bus (SDA) | Data signal 0-5 V | #1-#10 left screen |
| #A2 | Synch clock signal I2C (SCL) | Data signal 0-5 V | - |
| #A3 | Ground, screen | U=Ulow | Sheath to cable |
| #A4 | Infra red signal receiver (IR) | - | Remote control receiver |
| #A5 | Supply to infra red receiver (IR) | 5 V | Remote control receiver |
| #A6 | Supply to screen (LCD) | U=Uhigh | - |
| #A7 | Image signal | Analog signal | - |
| #A8 | Reference ground image signal and screen | U=Ulow | - |
| #A9 | Ground for background lighting screen | U=Ulow | Lighting LCD screen |
| #A10 | Supply for background lighting screen | U=Uhigh | Lighting LCD screen |
| #A11 | I2C data bus (SDA) | Data signal 0-5 V | #11-#20 right screen |
| #A12 | Synch clock signal I2C (SCL) | Data signal 0-5 V | - |
| #A13 | Ground, screen | U=Ulow | Sheath to cable |
| #A14 | Infra red signal receiver (IR) | - | Remote control receiver |
| #A15 | Supply to infra red receiver (IR) | 5 V | Remote control receiver |
| #A16 | Supply to screen (LCD) | U=Uhigh | - |
| #A17 | Image signal | Analog signal | - |
| #A18 | Reference ground image signal and screen | U=Ulow | - |
| #A19 | Ground for background lighting screen | U=Ulow | Lighting LCD screen |
| #A20 | Supply for background lighting screen | U=Ulow | Lighting LCD screen |
Signal table
| Terminal | Signal type | Ignition on | Cable or signal information |
|---|---|---|---|
| #B1 | 15 supply | U=Uhigh | U=Ulow with ignition off |
| #B2 | Ground TV | U=Ulow | TV ground, port select |
| #B3 | - | - | - |
| #B4 | - | - | - |
| #B5 | - | - | - |
| #B6 | Supply | U=Uhigh | - |
| #B7 | Video signal (in) | Analog signal | TV image |
| #B8 | Video, signal ground | U=Ulow | TV image |
| #B9 | Right audio signal (in) | - | TV audio |
| #B10 | Left audio signal (in) | - | TV audio |
| #B11 | Audio ground | U=Ulow | TV audio |
| #B12 | Power ground | U=Ulow | - |
Signal table
| Terminal | Signal type | Ignition on | Cable or signal information |
|---|---|---|---|
| #C1 | Right audio (out), sound channel 1 | AC | Low level, signal to headsets via rear audio separation (RAS). Each headset pair has one audio channel |
| #C2 | Left audio (out), sound channel 1 | AC | Low level, signal to headsets via rear audio separation (RAS). Each headset pair has one audio channel |
| #C3 | - | - | - |
| #C4 | Right audio (out), sound channel 2 | AC | Low level, signal to headsets via rear audio separation (RAS). Each headset pair has one audio channel |
| #C5 | Left audio (out), sound channel 2 | AC | Low level, signal to headsets via rear audio separation (RAS). Each headset pair has one audio channel |
| #C6 | Channel selector audio | 0 V = no signal at all 5 V = sound for the left screen in the speaker (master) 7.5 V = sound for the right screen in the speaker (master) |
The sound for the left-hand passenger position is always in the left-hand headset and vice-versa |
| #C7 | Video signal (in) | Analog signal | Wiring to AUX panel |
| #C8 | Video, signal ground | U=Ulow | Wiring to AUX panel |
| #C9 | Right audio signal (in) | - | Wiring to AUX panel |
| #C10 | Left audio signal (in) | - | Wiring to AUX panel |
| #C11 | Audio ground | - | Wiring to AUX panel |
| #C12 | Audio ground | - | Low level, signal to headsets via rear audio separation (RAS) |
Signal table
| Terminal | Signal type | Ignition on | Cable information |
|---|---|---|---|
| #D1 | - | - | A and B regard the connectors on the digital versatile disc player |
| #D2 | IR reference signal ground for DVD | U=Ulow | #A2 DVD (IR GND) |
| #D3 | - | - | - |
| #D4 | 15-supply and lighting to DVD | U = Ubat | #A6 DVD (Lighting) and #A7 (DVD 15-supply) |
| #D5 | IR control signal for DVD | U =5 V | #A1 DVD (IR in) |
| #D6 | Supply | U = Ubat | #A4 DVD (Batt) |
| #D7 | Image signal | Analog signal | #B7 DVD (Video out) |
| #D8 | Image signal reference ground | U=Ulow | #B8 DVD (Video GND) |
| #D9 | Right audio channel | AC | #B6 DVD (Audio right) |
| #D10 | Left audio channel | AC | #B5 DVD (Audio left) |
| #D11 | Reference ground for audio channels | U=Ulow | #B4 DVD (Audio GND) |
| #D12 | Ground | U=Ulow | #A8 DVD (ground) |
| #D13 | - | - | - |
| #D14 | - | - | - |
| #D15 | - | - | - |
| #D16 | - | - | - |
