Loudspeaker Front Side Door, Replacement: Removal

Remove the door panel Panel, front side door, replacing (-2003) or Panel front side door, replacing (2004-).

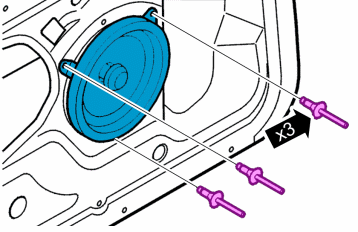

Fig 1: Identifying Pop Rivets

Courtesy of VOLVO CARS OF NORTH AMERICA.

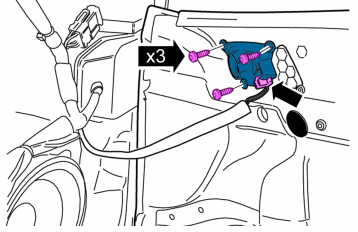

Fig 2: Identifying Securing Screws

Courtesy of VOLVO CARS OF NORTH AMERICA.

Remove the following items:

• pop rivet Removing rivet
• the connector
