Removing rivet

Special tools
	T9814075 SPRAY GUN Tool number: T9814075 Tool description: SPRAY GUN Tool boards:

Materials:
Designation	Part number
Thin rustproofing agent	1161682

NOTE:

If the pop rivet spins, drill at a 45° angle against the pop rivet.

Pay attention to heat generation when drilling in pop rivet mounted in plastic part.

Remove drill burrs and any remains of the rivet.

If possible, put tape on the back to catch pop rivet.

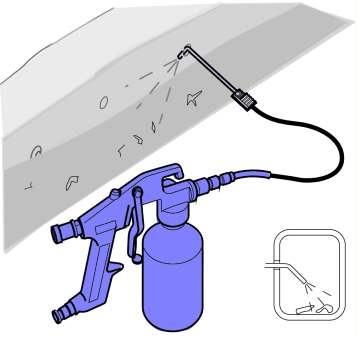

Fig 1: Applying Thin Rustproofing Agent

Courtesy of VOLVO CARS OF NORTH AMERICA.

To avoid rattling if it is not possible to remove remains of rivet.

CAUTION:

Make sure that rustproofing agent does not run out, discoloring the upholstery or other.
