Reverse warning system: Reinstallation

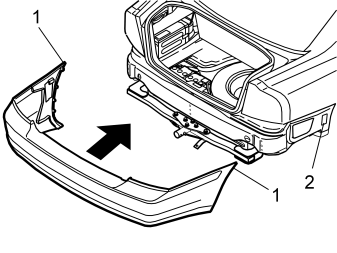

Fig 1: Identifying Bumper Installation

Courtesy of VOLVO CARS OF NORTH AMERICA.

Reinstall the bumper. Locate the ends of the bumper (1) in the rails (2). Push the bumper in.
Reinstall and tighten the nuts. Tighten to 18 Nm (13 lbf. ft.)
Reinstall the rubber seals.

Fig 2: Identifying Riveting Of Bumper Cover Liner

Courtesy of VOLVO CARS OF NORTH AMERICA.

Install the liner for the bumper cover. Rivet the liner on both sides
Reinstall the wheels. Tighten the front wheels. Tighten to 110 Nm (81 lbf. ft) .
