Installing control module on right-hand body side

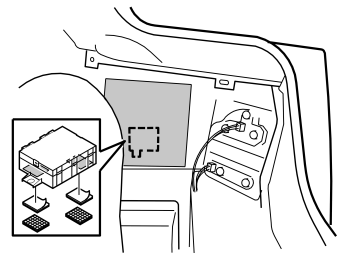

Fig 1: Identifying Connection Of Cable From Sensors

Courtesy of VOLVO CARS OF NORTH AMERICA.

• Mark the surfaces for the position of the Velcro strip on the control module and the side of the body
• Clean the marked surfaces using the wet cloth. Allow to dry
• Remove the protective film from the Velcro strip. Secure the strip on the marked surface on the control module
• Remove the protective film from the remaining Velcro strip. Secure on the marked surface on the body side
• Install the control module
• Connect the cable from the sensors.
