Installing and connecting buzzer
Courtesy of VOLVO CARS OF NORTH AMERICA.
- Connect the 16 pin connector to the control module
- Route the control module cable harness as illustrated

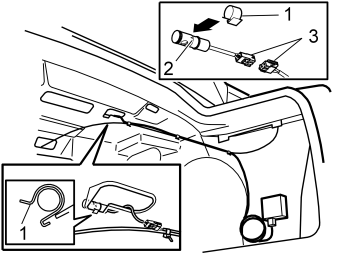

- Install the clip (1) on the buzzer (2)
- Connect the 2-pin connector (3) to the cable harness as illustrated
- Install the buzzer at the smaller hole in the left-hand side of the parcel shelf
- Clamp the cable harness along the existing mechanical cable for folding the rear seat. Excess cable must be gathered and secured at the control module
- Also secure the connector.
Courtesy of VOLVO CARS OF NORTH AMERICA.
- Disconnect the green connector (1) from the reversing lamp. Separate the connector
- Remove the black (SB) cable from terminal 1
- Cut off the cable terminal. Twin the cable terminal with the black (SB) cable which goes to the control module
- Install a new cable terminal, P/N 9168510. Connect the cable terminal to terminal 1 in the connector
- Disconnect the blue (BL) cable from terminal 3. Cut off the cable terminal and twin it with the red (R) cable to the control module
- Install a new cable terminal, P/N 9168510. Connect the cable terminal to terminal 3 in the connector
- Reinstall the connector on the reversing lamp.
