Cleaning and taping mating surfaces on inside of bumper

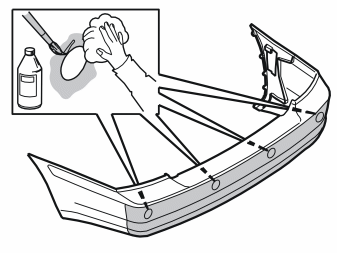

Fig 1: Cleaning Holes And Applying Primer

Courtesy of VOLVO CARS OF NORTH AMERICA.

• Wash any dirt and stones off the bumper casing. Use a mild soap solution
• Clean around the drilled holes using cleaner H, P/N 1161436-9 or a wet cloth. Allow to dry
• Apply primer (P/N 9192679) around the holes. Allow to dry.

Fig 2: Cleaning Around Drilled Holes

Courtesy of VOLVO CARS OF NORTH AMERICA.

• Clean the mating surface on the holders for the sensors. Use cleaner H (P/N 1161436-9) or a wet cloth. Allow to dry
• Apply the primer (P/N 9192679) to the cleaned surfaces of the holders. Allow to dry.
