Routing cable
- Pull the end of the cable with loose pins into the engine compartment.

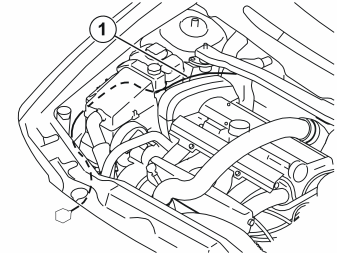

- Route the cable (1) as illustrated. Place it under the fuse holder and expansion tank so that it is concealed.
- Make sure that it is positioned so that it is not damaged by heat or wear.
- Clamp it in with tie straps from the kit.
