Preparing seats

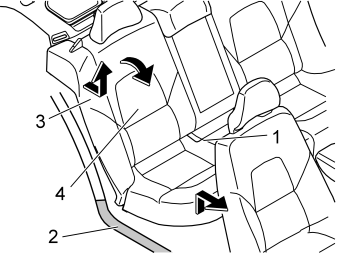

Fig 1: Identifying Right-Hand Section Of Rear Seat Folded Forward

Courtesy of VOLVO CARS OF NORTH AMERICA.

Detach the seat cushion (1) from the rear seat by pulling the cushion up at the front edge and then straight forward.
Detach the right-hand sill (2) by the rear seat.
Fold forward the right-hand section (4) of the rear seat.
Remove the seatbelt from the guide on the side bolster (3).
Put your hand to the side of the lower section of the side bolster.
Release the catches. At the same time lift the side bolster.
Place the bolster to one side.
