Preparing passenger compartment

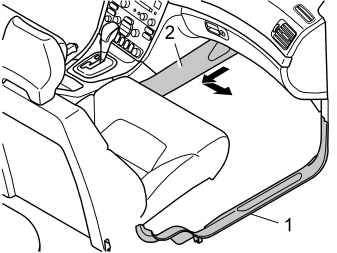

Fig 1: Identifying Sill And Center Console Panels

Courtesy of VOLVO CARS OF NORTH AMERICA.

Illustrations show a left-hand drive car.

For right-hand drive cars: carry out the corresponding procedure on the left-hand side of the car.

• Detach the sill (1) and the right-hand panel (2) of the center console.
