Marking and drilling holes

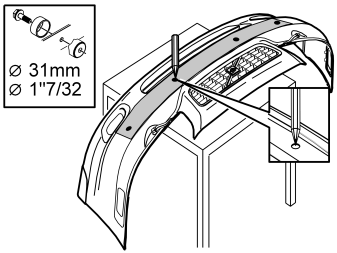

Fig 1: Identifying Hole Enlargement

Courtesy of VOLVO CARS OF NORTH AMERICA.

• Reinstall the foam temporarily and mark out through the holes in the bumper cover for corresponding holes in the foam.
• Remove the foam from the bumper cover.
• Open the holes in the bumper cover. Use a 31 mm (17/32")  diameter hole punching tool (P/N 9814069). The socket and screw of the hole punching tool must be on the inside of the bumper cover.

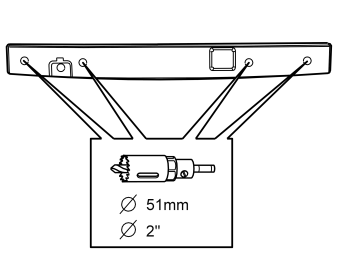

Fig 2: Identifying Hole Locations In Foam

Courtesy of VOLVO CARS OF NORTH AMERICA.

• Drill four holes in the foam using a 51 mm (2')  diameter hole saw in accordance with the new markings.

Illustration A shows the right-hand side of the foam

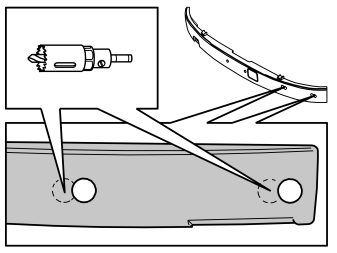

Fig 3: Identifying Additional Hole Locations (1 Of 2)

Courtesy of VOLVO CARS OF NORTH AMERICA.

Illustration B shows the left-hand side of the foam

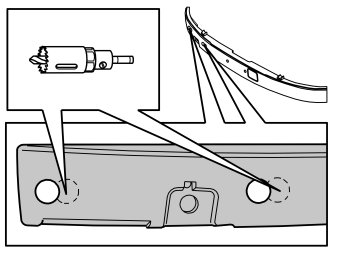

Fig 4: Identifying Additional Hole Locations (2 Of 2)

Courtesy of VOLVO CARS OF NORTH AMERICA.

• Additional holes must be drilled in accordance with illustrations A and B, straight in towards the center, in order to make space for the sensors' connector sockets.
