Installing cable harness from bumper

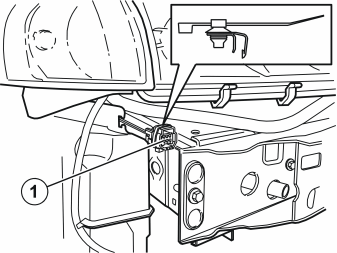

Fig 1: Identifying Cable Harness

Courtesy of VOLVO CARS OF NORTH AMERICA.

Illustrations show a left-hand drive car.

For right-hand drive cars: carry out the corresponding procedure on the left-hand side of the car.

• Take the short cable harness from the kit.
• Detach the smaller connector from the cable.
• Fit the waterproofed connector (1) with plastic clamp / metal clip from the kit.
• Secure the plastic clamp around the connector and install the metal clip around the panel edge on the right-hand side of the car.
