Connecting cable

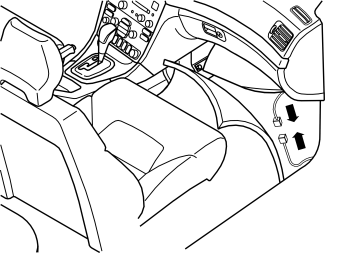

Fig 1: Identifying Connector

Courtesy of VOLVO CARS OF NORTH AMERICA.

• Take the long cable from the kit. Connect it to the connector which has just been prepared.
• Route the cable over to the side of the car and on back under the sills along the existing cable harnesses backwards and into the cargo compartment.

Applies to left-hand drive cars

• Continue to route the cable along the rear sill to the left-hand wheel arch.

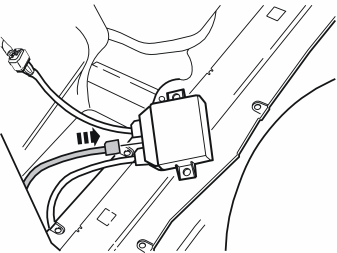

Fig 1: Identifying Connection Of Cable

Courtesy of VOLVO CARS OF NORTH AMERICA.

• Connect the routed cable to an available port on the parking assistance module (PAM). It is secured with Velcro on the left-hand side in the cargo compartment behind the wheel arch.
