Folding fender liner

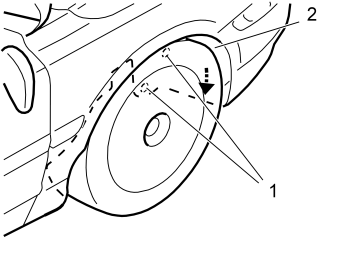

Fig 1: Identifying Nuts And Fender Liner

Courtesy of VOLVO CARS OF NORTH AMERICA.

Carry out the following on the right-hand side of the car

• Raise the car
• Turn the wheels to the left
• Carefully drill out the remaining blind rivet from the wing liner at the front edge of the wheel arch
• Remove the nuts (1) from the wing liner. Fold down the wing liner (2).
