Calibration routine

To avoid faulty convertible top positions being stored by mistake, it is important to proceed as follows:

• connect the Volvo Scan Tool (VST) to the data link connection
• ignition on, with battery back-up.

The starting position for calibration is with the convertible top fully packed down. The rear latches must be lowered and the cover must be closed and locked.

• Unlock the cover
• Press ENTER
• Lift up the cover by hand
• Press ENTER
• Lower the rear latches so that they press against the convertible top. They must be stationary
• Save this position by pressing [YES]  , press [NO]  to move to the next or press [EXIT]  to end the calibration
• Put the cover down by hand
• Press ENTER
• Open the cover fully using the Volvo Scan Tool (VST)
• Save this position by pressing [YES]  , press [NO]  to move to the next or press [EXIT]  to end the calibration
• Lower the convertible top fully
• Save this position by pressing [YES]  , press [NO]  to move to the next or press [EXIT]  to end the calibration.

Fig 1: Positioning Cover

Courtesy of VOLVO CARS OF NORTH AMERICA.

• Open the convertible top completely
• Save this position by pressing [YES]  , press [NO]  to move to the next or press [EXIT]  to end the calibration
• Close the front lock for the mechanical stop
• Save this position by pressing [YES]  , press [NO]  to move to the next or press [EXIT]  to end the calibration
• Lower the cover fully using the Volvo Scan Tool (VST)
• Press ENTER
• Close the lock for the cover
• Save this position by pressing [YES]  , press [NO]  to move to the next or press [EXIT]  to end the calibration
• Press ENTER
• Adjust the rear latches so that they are exactly under the convertible cover.

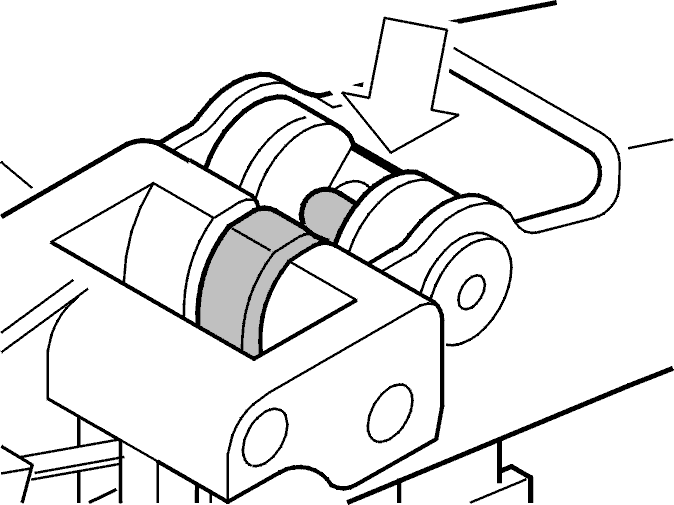

Fig 2: Pressing Snap-Fastener Together

Courtesy of VOLVO CARS OF NORTH AMERICA.

Adjusting the engagement position

• In the engagement position, the front edge of the lock catch and the edge of the tensioner rib lock side piece must be parallel
• Save this position by pressing [YES]  , press [NO]  to move to the next or press [EXIT]  to end the calibration
• Lower the tensioner rib
• Tension the convertible top by operating the rear latches.

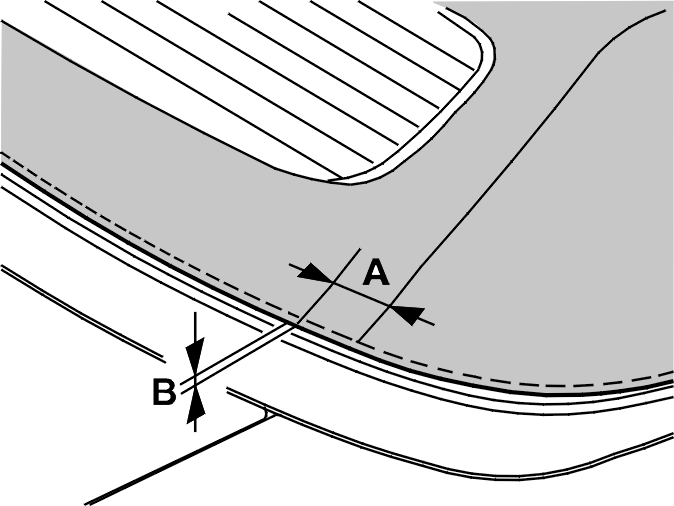

Fig 3: Identifying Gap And Measurement Points Between Plastic And Fabric Strip

Courtesy of VOLVO CARS OF NORTH AMERICA.

• Measure the distance between the fabric and the plastic strip at the lower edge of the rear of the convertible top
• The measurement points are 80 mm inside the longitudinal seam on both sides (A)
• To achieve a seal, there must be a gap of approximately 4 mm between the fabric and the plastic strip (B)
• Save this position by pressing [YES]  , press [NO]  to move to the next or press [EXIT]  to end the calibration
• Ignition off
• Ignition on
• Wait
• The calibration of the convertible top is complete
• Check the function.
