Inspecting the lock brace

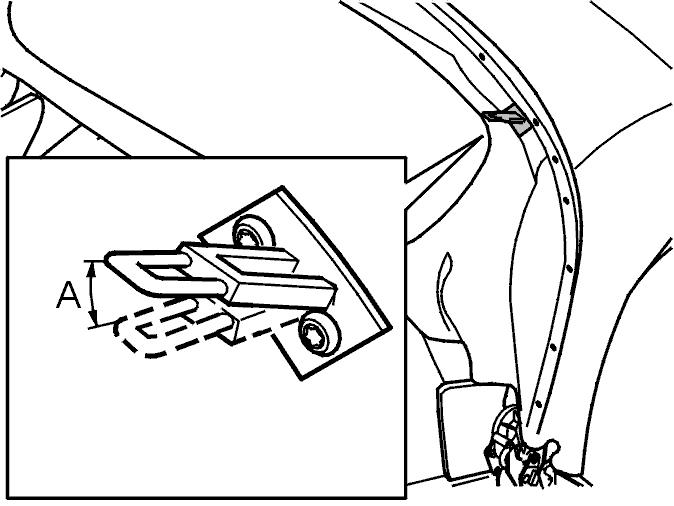

Fig 1: Inspecting Lock Brace

Courtesy of VOLVO CARS OF NORTH AMERICA.

Push the bottom end of the lock brace down by 10 mm (3/8") and release slowly. Repeat this operation several times.

The lock brace must consistently return to its original position without assistance. If not, the lock brace assembly must be replaced.
