Wet rear passenger foot-well mat

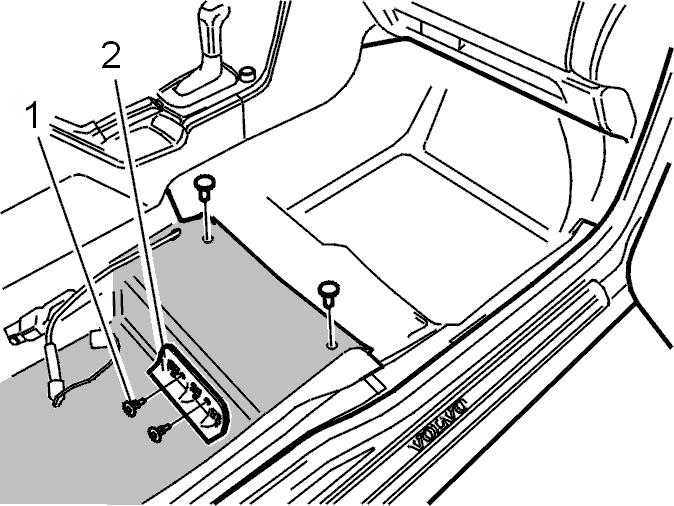

Fig 1: Identifying A/C Floor Vent Louver, Carpet, And Clips

Courtesy of VOLVO CARS OF NORTH AMERICA.

Raise foot-well carpet

Remove two clips (1) and take out AC floor vent louver (2).

Remove two carpet clips (3).

Pull carpet free of side moldings.

Fold foot-well carpet over center console.

Remove foot-well mat.

Dry floor thoroughly.

Lay out the new foot-well mat on a flat cutting surface.

Lay old foot-well mat on top of new mat. Align openings and rear edges of the mats.

Scribe a line across the front edge of the new mat.

Cut the new mat on the scribed line.

Install newly cut rear-center mat section.
