Wet front foot-well mat

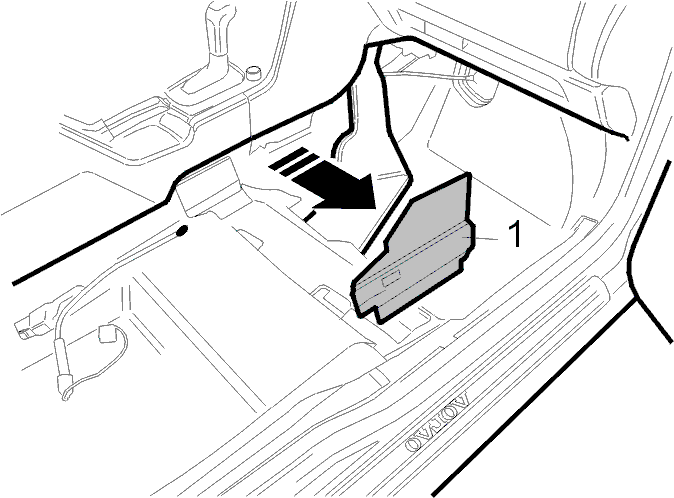

Fig 1: Identifying Inner Panel
GLL147962Courtesy of VOLVO CARS OF NORTH AMERICA.

Remove front carpet panel

Pull carpet panel free of side moldings.

Remove carpet from vehicle and set aside.

Remove kick panel

Carefully remove inner panel (1).
