Replacing insulation mat
If wet

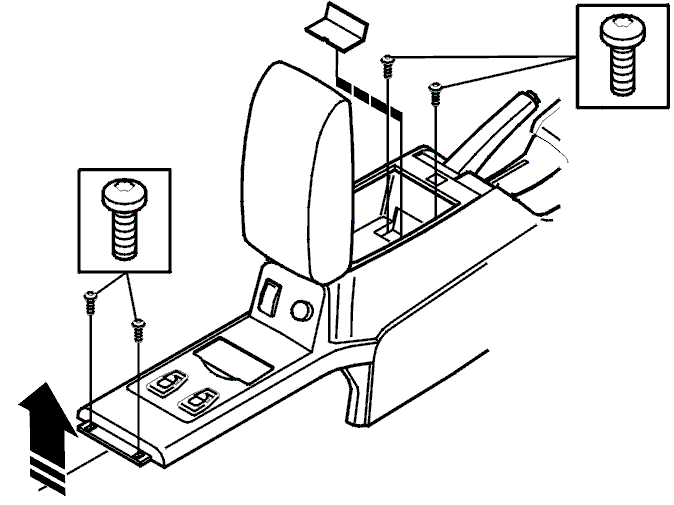

Remove four bolts and slightly raise the back of the center console.
Remove the wet insulation mat.
Dry floor thoroughly.
Install a new insulation mat.
If drops or water can be squeezed from mat foam, or if a mat has an odor, the mat is wet .
If damp
Dry out the floor with a rag or paper as much as possible.
Lift the insulation mat from the floor enough so that air can circulate. Use a fan to dry out the floor and insulation.
If dry, or after completing the above:
Remove passenger's side front seat
Front passenger's seat must be removed to replace wet center or front mats, and to prepare for passenger power seat harness upgrade described in Campaign 91D: Service Bulletin 37-0003.
Driver's seat may also need to be removed if driver's side mats are wet, as explained later in this method.
Remove:
- cover over seat belt slide bar, one bolt
- attachment bolt with washer and spacer sleeve
- seat belt from slide bar
- the seat belt slide bar and set aside.
