Location of Template

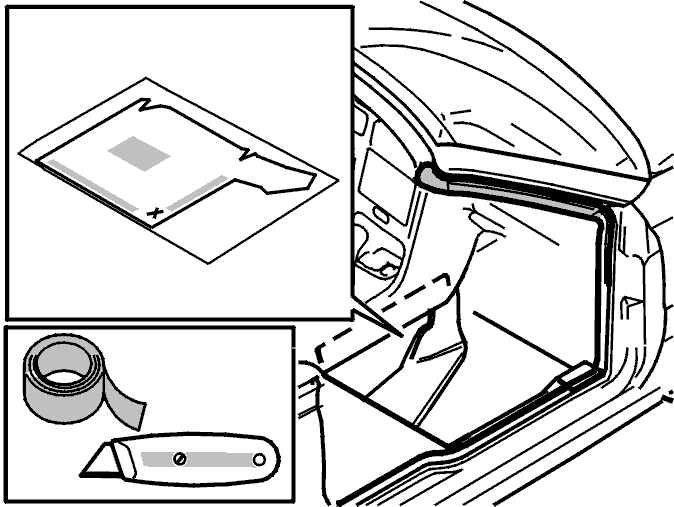

Fig 1: Placing Template In Footwell

Courtesy of VOLVO CARS OF NORTH AMERICA.

NOTE:

The instruction applies to both right and left hand side.

Carefully lift air duct (1) as high as possible without detaching it from its attachment points. (Applies to both right and left hand side).

DRIVER SIDE FOOT WELL : Place the appropriate template in the foot well, see illustration.

Adjust the template so that the "X" on the template is positioned in the left rear corner of the foot well, close to the inner rocker panel.

PASSENGER SIDE FOOT WELL : Place the appropriate template in the foot well, see illustration.

Adjust the template so that the "X" on the template is positioned in the right rear corner of the foot well, close to the inner rocker panel.

Secure template with staples or tacks so that it sits flush against insulation mat and cannot shift.
