Damp rear passenger foot-well mat

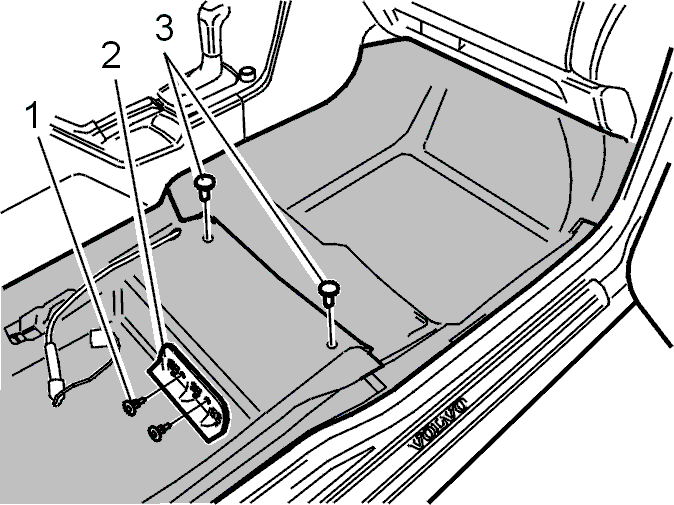

Fig 1: Identifying A/C Floor Vent Louver, Carpet, And Clips

Courtesy of VOLVO CARS OF NORTH AMERICA.

Raise foot-well carpet and mat

Remove two clips (1) and take out AC floor vent louver (2).

Remove two carpet clips (3).

Pull carpet free of side moldings.

Fold foot-well carpet over center console.

Raise foot-well insulation mat to allow air to circulate under it.

Use a fan to dry the floor and underside of foot-well mat.
