Remove the air cleaner (ACL) housing

WARNING: This page is about a different variant/trim than selected.

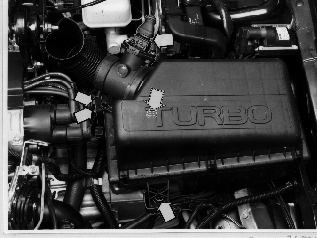

Fig 1: Identifying MAF Sensor Connector, ACL Housing And TCV Bracket Screws
GLL125816Courtesy of VOLVO CARS OF NORTH AMERICA.

disconnect mass air flow (MAF) sensor connector

Disconnect and raise air cleaner (ACL) housing.

Remove two turbocharger control valve (TCV) bracket screws
