Install air cleaner (ACL) housing: Notes

WARNING: This page is about a different variant/trim than selected.

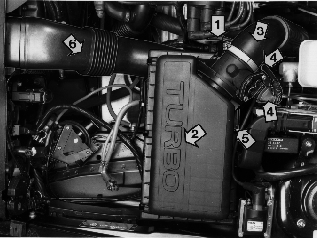

Fig 1: Identifying IAC Valve, Ignition Cable, ACL Housing, MAF Sensor Connector, Fresh Air Intake And TCV Bracket

Courtesy of VOLVO CARS OF NORTH AMERICA.

Connect the connector and vacuum hoses to the idle air control (IAC) valve.

Ignition cable between distributor/ignition coil.

NOTE: Yellow marking first rib on cleaner cover.

Install the air hose and the air cleaner (ACL) housing. Connect mass air flow (MAF) sensor connector.

Connect fresh air intake.

Install the bracket for the turbocharger control valve (TCV) on the air cleaner (ACL) housing.

Install:

Fig 2: Identifying Battery Shelf And Battery With Cables

Courtesy of VOLVO CARS OF NORTH AMERICA.

CAUTION: If the car is equipped with a cruise control connect the vacuum hose and vacuum motor wiring before the battery shelf is screwed into place.

Install:

Fig 3: Identifying Exhaust Pipe's Front Flange Seal Nuts And Front/Rear Engine Pad Screws

Courtesy of VOLVO CARS OF NORTH AMERICA.

two upper exhaust pipe nuts (do not tighten them), raise the car
exhaust pipe lower nut (do not tighten them)
screw for exhaust pipe bracket. Torque to 30 Nm .
speedometer connector.
front and rear engine mounting screws. Torque to 50 Nm .
torque arm screw in the transmission, use a new screw and nut. Tighten to 35 Nm + 90° .

Install:

Fig 4: Identifying Tie Rod End, Transmission Torque Rod Screw And Ball Joint To Control Arm Nuts

Courtesy of VOLVO CARS OF NORTH AMERICA.

the two screws for the right engine mounting (bend the right fender liner to one side slightly first)
right drive shaft and pilot bearing

Install:

Fig 5: Identifying ABS Cable/Brake Pipe Bracket Screw

Courtesy of VOLVO CARS OF NORTH AMERICA.

left drive shaft, this should be easily installed with hand pressure (the snap ring is easy to damage )
ABS cable/brake pipe bracket screw
