Turn engine crankshaft two turns

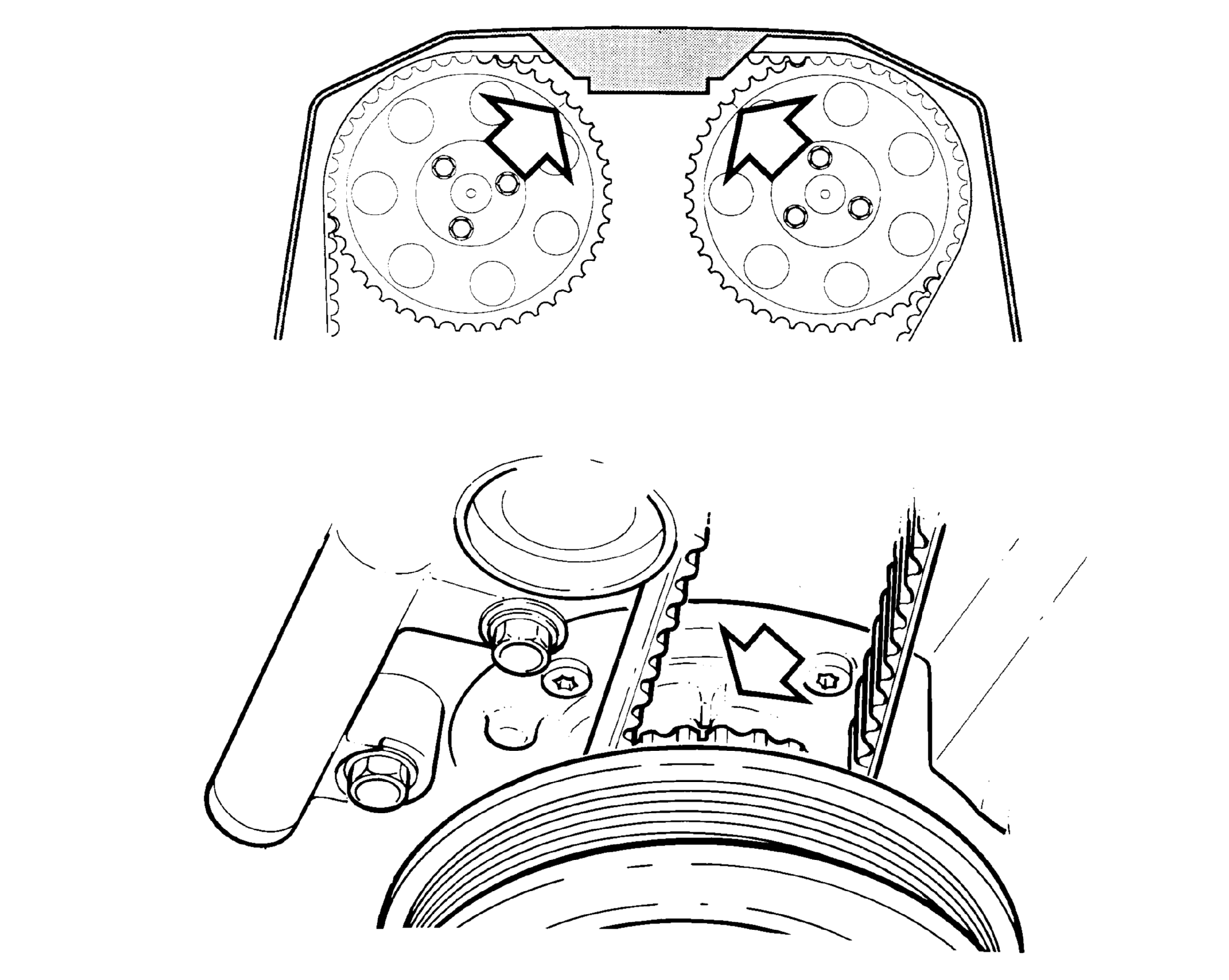

Fig 1: Identifying Camshafts/Crankshaft Positions

Courtesy of VOLVO CARS OF NORTH AMERICA.

Pull the lock pin out of the tensioner/damping unit.

Position the upper timing cover.

Turn crankshaft two revolutions and check that the markings on the crankshaft and camshaft timing gear pulley align.
