Install the new timing belt

WARNING: This page is about a different variant/trim than selected.

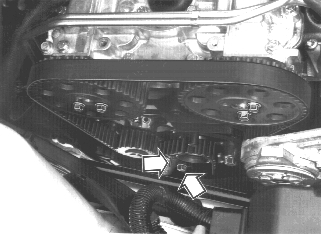

Fig 1: Identifying Camshaft Pulleys With Screws, Tensioner Damping Unit And Timing Belt
GLL125701Courtesy of VOLVO CARS OF NORTH AMERICA.

Install the tensioner damping unit, torque tighten to 25 Nm  .

Place belt around crankshaft and right idler pulley.

Place belt over camshaft pulley.

Position belt around coolant pump and press the belt over the tensioner pulley.
