Greasing the bushing
WARNING: This page is about a different variant/trim than selected.

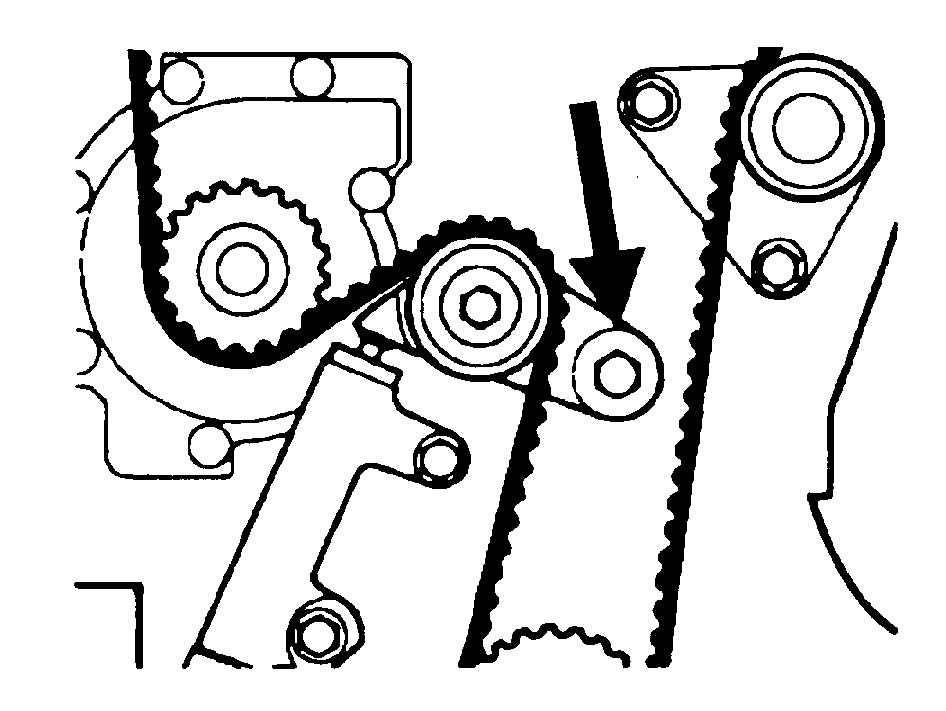

Engines with automatic timing belt tensioners should have the lever bushing greased every time the belt is changed or the tension pulley removed. The lever arm must be greased so that the bearing does not stick and give the wrong tension.
Remove:
Tension pulley lever screw
Tension pulley
Sleeve behind screw
Grease the surfaces on the lever bushing, the screw and the sleeve with grease P/N. 11 61 246-2 (50g) or 11 61 247-0 (500g).
Install:
Sleeve
Tension pulley
Tension pulley lever screw
Tighten the screw to 39 5 Nm .
