Tighten the camshaft pulleys

WARNING: This page is about a different variant/trim than selected.

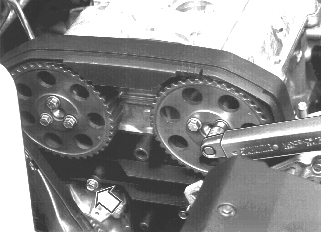

Fig 1: Identifying Inner Timing Cover Screw

GLL125715

Courtesy of VOLVO CARS OF NORTH AMERICA.

Install the third screw and tighten the screws to 20 Nm .

Install the inner timing cover screw.

Install the upper timing cover.

Fig 1: Identifying Inner Timing Cover Screw

GLL125715

Courtesy of VOLVO CARS OF NORTH AMERICA.

Install the third screw and tighten the screws to 20 Nm .

Install the inner timing cover screw.

Install the upper timing cover.
