Remove the holding tools

WARNING: This page is about a different variant/trim than selected.

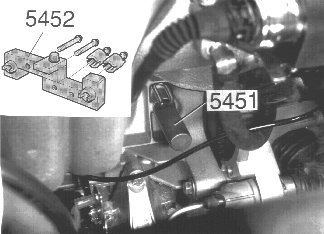

Fig 1: Identifying Adjustment Tool And Camshaft Adjustment Tool

Courtesy of VOLVO CARS OF NORTH AMERICA.

Remove crankshaft adjustment tool ( 9995451 ) for the crankshaft and install the blind cover plug

Install the starter motor.

Remove the camshaft adjustment tool ( 9995452 ).

Fig 1: Identifying Adjustment Tool And Camshaft Adjustment Tool

Courtesy of VOLVO CARS OF NORTH AMERICA.

Remove crankshaft adjustment tool ( 9995451 ) for the crankshaft and install the blind cover plug

Install the starter motor.

Remove the camshaft adjustment tool ( 9995452 ).
