Remove the cylinder head

WARNING: This page is about a different variant/trim than selected.

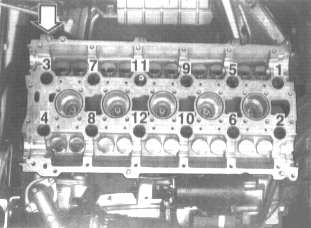

Fig 1: Identifying Cylinder Head Torque Sequence

Courtesy of VOLVO CARS OF NORTH AMERICA.

Remove the coolant pipe's two screws.

Loosen the cylinder head's screws, (from the outside and in).

Remove the cylinder head.

Remove the cylinder head gasket.
