Install the camshaft seals, front

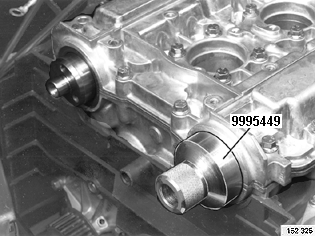

Fig 1: Identifying Drift

Courtesy of VOLVO CARS OF NORTH AMERICA.

Use drift 9995449 .

Grease the seal.

Tap in the seal.

The later version of punch 999 5449 is made of plastic.

Fig 1: Identifying Drift

Courtesy of VOLVO CARS OF NORTH AMERICA.

Use drift 9995449 .

Grease the seal.

Tap in the seal.

The later version of punch 999 5449 is made of plastic.
