Install the camshaft pulleys

WARNING: This page is about a different variant/trim than selected.

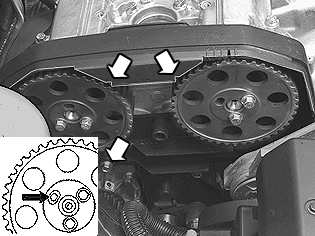

Fig 1: Identifying Camshaft Pulleys And Screws

GLL125714

Courtesy of VOLVO CARS OF NORTH AMERICA.

Fit the upper timing casing

Install the camshaft pulleys, align according to marking.

Tighten the two screws until they just come into contact with the camshaft pulleys.

Remove the upper timing cover.

NOTE: Check that the camshaft screw holes are centered, see Fig 1.

Fig 1: Identifying Camshaft Pulleys And Screws

GLL125714

Courtesy of VOLVO CARS OF NORTH AMERICA.

Fit the upper timing casing

Install the camshaft pulleys, align according to marking.

Tighten the two screws until they just come into contact with the camshaft pulleys.

Remove the upper timing cover.

NOTE: Check that the camshaft screw holes are centered, see Fig 1.
