Install the front camshaft seal

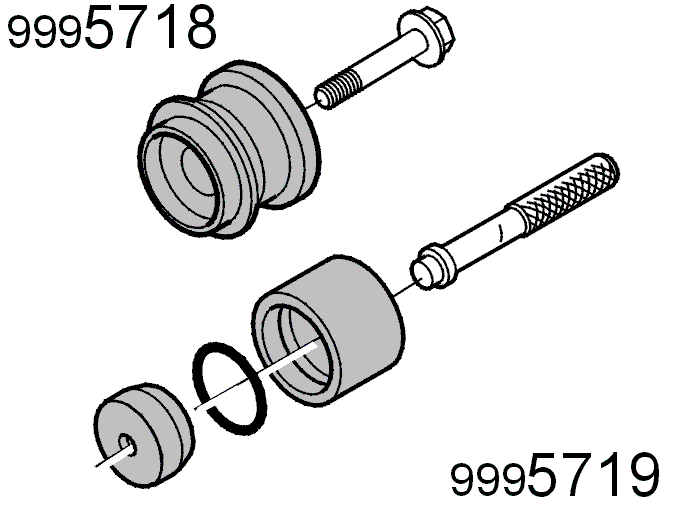

Fig 1: Identifying Drift

Courtesy of VOLVO CARS OF NORTH AMERICA.

Applies to turbo engine:

• Oil in and install the camshaft seal.
• For camshafts with VVT, use drift 9995718 .
• For camshafts without VVT, use drift 9995719 .

Applies to aspiration engine:

• Oil in and install the camshaft seals.

  Use drift 9995719 .
