Apply liquid gasket

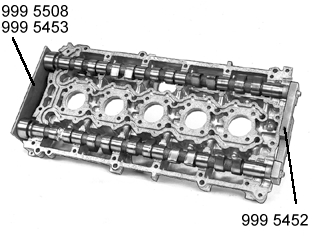

Fig 1: Identifying Camshaft Cover With Holders And Tool

Courtesy of VOLVO CARS OF NORTH AMERICA.

Roll on gasket compound:

• Apply liquid gasket, part no.: 116 1059  , on the camshaft cover.

  Use roller 9511205 .

  Make sure that gasket compound does not end up in the oil channels.

  A thin layer is enough to seal.

• Oil in the bearing positions for the camshafts in the camshaft cover.
• Install the camshafts.

  Check the markings.

• Fixate the camshafts at the front with holders 9995453 and at the trailing edge with tool 9995452 .
