Rear seal: Remove:

WARNING: This page is about a different variant/trim than selected.

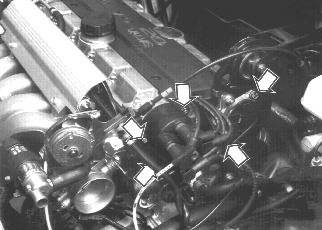

Fig 1: Identifying ACL Housing, Distributor Cover, Rotor, Holder, CMP Sensor Housing And Damper
GLL125703Courtesy of VOLVO CARS OF NORTH AMERICA.
NOTE: Connectors and hoses for solenoid valve on the air cleaner housing (ACL).
