Remove and install new camshaft seal

WARNING: This page is about a different variant/trim than selected.

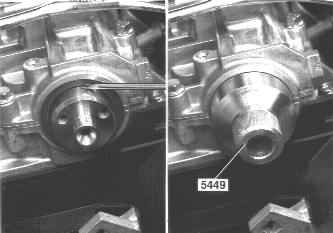

Fig 1: Identifying Drift

Courtesy of VOLVO CARS OF NORTH AMERICA.

Remove camshaft seal/seals

Lubricate and install a new seal with drift 9995449 , use a copper mallet. (Drift 9995449 of the later version is made of plastic.)

NOTE: Later version sealing rings are removed with an extractor 9995919 , because of the reduced space between the camshaft and sealing ring reinforcement.
